CNC LATHE [ RF-C20 / RF-C25 / RF-C32 ]

產品介紹:

本機為CNC自動車床,可加工較精密零件如電子接頭．電腦．食品．汽車．五金等的零配件加工,可依客戶的零件設計需求打樣品,亦可當二次加工專用機械,提升產量的好選擇.

Product Introduction :

Computer numerical control automatic lathe machine, which is designed for electronic connectors, computer, food, car, hardware accessory etc, According to buyer's design to lathe sample; especially, OEM design enhance option of productive efficiency as to be reprocessing machine.
形式 [MODEL ]
RF-C20
RF-C25
RF-C32
最大加工外徑 [Max. Turning O.D. ]
ø100mm
ø100mm
ø100mm
最大加工長度[Max. Turning Length]
90mm
100mm
100mm
X軸行程[Rapid Traverse X]
290mm
340mm
340mm
Z軸行程[Rapid Traverse Z]
110mm
110mm
110mm
棒材最大加工尺寸[Bore of Spindle]
ø21mm
ø26mm
ø33mm
主軸馬達[Spindle Motor]
VAC2kw
VAC3 kw
VAC4 kw
X軸馬達[X-axis Motor]
400w
750w
750w
Z軸馬達[Z-axis Motor]
400w
750w
750w
主軸最高轉速[Spindle Max. Speed]
0-6000rpm
0-6000rpm
0-3000rpm
X軸快速移動[Rapid Trav. Speed{X-axis}]
18m/min
18m/min
18m/min
Z軸快速移動[Rapid Trav. Speed{Z-axis}]
16m/min
16m/min
16m/min
最小輸入單位[Min. Input Unit]
0.001mm
0.001mm
0.001mm
外徑車刀[O.D. Tool]
□12mm or □16mm
□12mm or □16mm
□12mm or □16mm
內徑車刀[I.D. Tool]
ø20mm
ø20mm
ø20mm
刀具數量[Tool Position]

6支車刀、4支內徑刀、側銑或立銑1支共11把刀

Turning Tools 6pcs、Internal Turning 4pcs、Side Milling 1 pc or Front Milling 1pc Total Tools 11pcs
冷卻幫浦馬達[Coolant Pump Motor]
1HP
1HP
1HP
油箱容量[OIL Tank]
130L
130L
130L
油壓馬達[Hydraulic Motor]
1HP
1HP
1HP

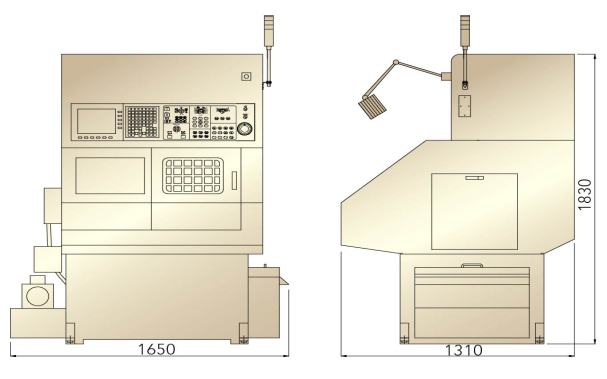

機械尺寸[Machine Dimension]
1580×1300×1830mm
1650×1310×1830mm
1650×1310×1830mm
機械重量[淨重] [Net Weight]
1380kgs
1600kgs
1600kgs
控制器[Controler]
SYNTEC-900T or LNC-T600
