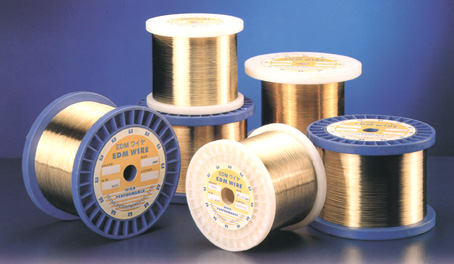

WIRE
(Brass EDM Wire/ Phosphor Bronze Wire & Electrode Tube)


Without Brass Wire Scrap
Superior Straightness & Roundness
High Dimensional Accuracy & High Tensile Strength
ITEM NO WIRE DIA.
(φ mm)		 TENSILE STRENGTH
(kgf/mm2)min.		 ELONGATION
(%)		 TOLERANCE
(mm)

(HARD)
PMH-10
PMH-15
PMH-20
PMH-25
PMH-30


0.10
0.15
0.20
0.25
0.30


100~110
100~110
100~110
100~110
100~110


0.4
0.4
0.4
0.4
0.4


+/-0.001
+/-0.001
+/-0.001
+/-0.001
+/-0.001

(SEMI-HARD)
PMA-10
PMA-15
PMA-20
PMA-25
PMA-30


0.10
0.15
0.20
0.25
0.30


49~53
49~53
49~53
49~53
49~53


0.4
0.4
0.4
0.4
0.4


+/-0.001
+/-0.001
+/-0.001
+/-0.001
+/-0.001

Brass Material Specs. : JIS H3260 C2700W      Material Composition : Cu 65% / Zn 35%


Electrode tubes(including brass and copper)

OD X ID X L
0.20mm X 0.10mm X 200mm
0.30mm X 0.12mm X 400mm
0.30mm X 0.12mm X 300mm
0.40mm X 0.15mm X 400mm
0.40mm X 0.15mm X 300mm
0.50mm X 0.18mm X 400mm
0.60mm X 0.20mm X 400mm
0.70mm X 0.20mm X 400mm
0.80mm X 0.30mm X 400mm
0.90mm X 0.30mm X 400mm
1.00mm X 0.30mm X 400mm
(outside diameter)1.10mm~3.00mm X 400mm

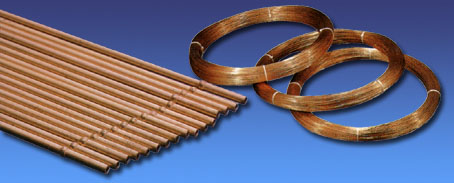

COOLANT THERMAL TUBES
Suitable for : Refrigerators, Ice Boxes, Cooling Systems...etc.

Ranges : O.D. Ø1.80 ~ Ø6.35mm
              I.D. Ø0.70 ~ Ø5.15mm
